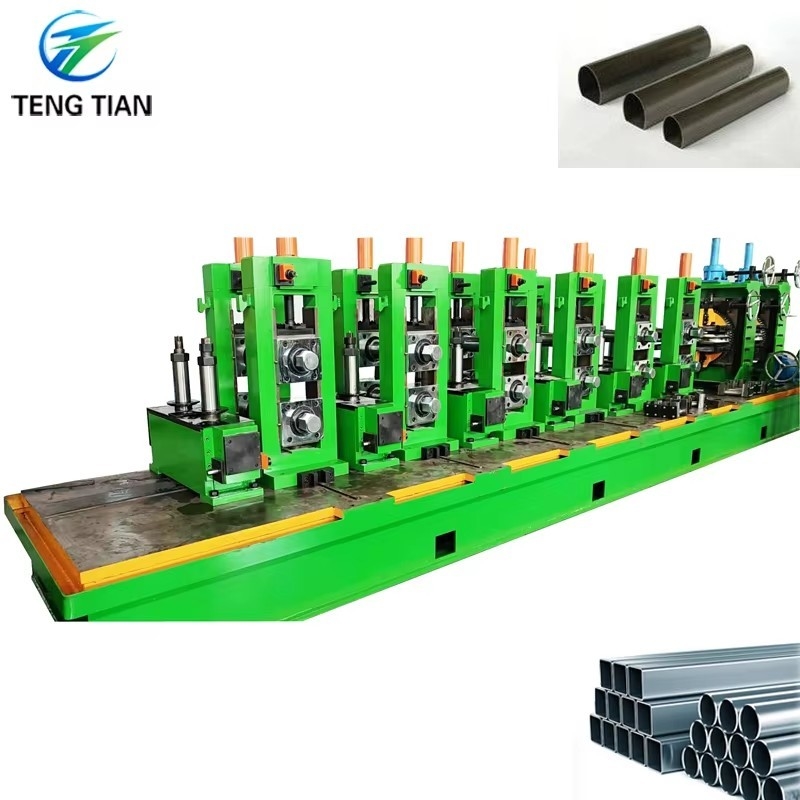

HG114 ERW Carbon Steel 1.0-4.0mm Tube Mill Machine

Name: HG114 ERW Carbon Steel 1.0-4.0mm Tube Mill Machine
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG114
Price: 50,000.00 USD
Availability: InStock

製品の詳細:

起源の場所:	中国
ブランド名:	TengTian
証明:	BV,CE,ISO
モデル番号:	HG114

詳細情報

起源の場所:

中国

ブランド名:

TengTian

証明:

BV,CE,ISO

モデル番号:

HG114

製品名:

HG114 ERW 炭素鋼 1.0-4.0mm チューブミルマシン

コイル:

炭素鋼

重さ:

3000kg

厚さ:

1.0-4.0mm

幅:

100-350mm

溶接機:

300kw

スピード:

100m/min

キーワード:

炭素鋼1.0-4.0mmチューブミールマシン

ハイライト:

High Light

ハイライト:

ERW carbon steel tube mill machine

1.0-4.0mm tube mill machine

HG114 tube mill machine with warranty

取引情報

最小注文数量:

1セット

価格:

$100000 to $1 million

パッケージの詳細:

プラスチックフィルム巻き,電気部品用の木製ケース

受渡し時間:

150日

支払条件:

L/C,T/T

供給の能力:

年間26日

製品説明

HG114 ERW Carbon Steel 1.0-4.0mm Tube Mill Machine

Product Specifications

Attribute	Value
Product Name	Tube Mill Machine HG114 ERW Features High yield and Smooth running
Coil	Carbon Steel
Weight	3000kg
Thickness	1.0-4.0mm
Width	100-350mm
Welding Machine	300KW
Speed	100 m/min

Technical Documentation Included

Unit operation manual (provided one month before delivery) - 1 copy
Factory inspection certificate (provided at delivery) - 1 copy
Shipping list (provided at delivery) - 1 copy
Layout plan (provided one month before delivery) - 1 copy
Foundation drawing (provided one month before delivery) - 1 copy
Electrical schematic diagram (provided at delivery) - 1 copy
Single machine general assembly drawing (provided at delivery) - 1 copy
Part drawing of wearing parts (provided at delivery) - 1 copy

Key Components

Main Motor: Total power of the whole device. DC motor drive frequency conversion motor 132kw (two units)
Main Reducer: Hard tooth surface two-speed speed reducer ZLY250 Changzhou International trade reducer
Worktable: Steel plate welding structure with mesa milling processing
Drive Shaft: Connects horizontal roller frame and transmission parts of speed division cabinet body (Model 153)
