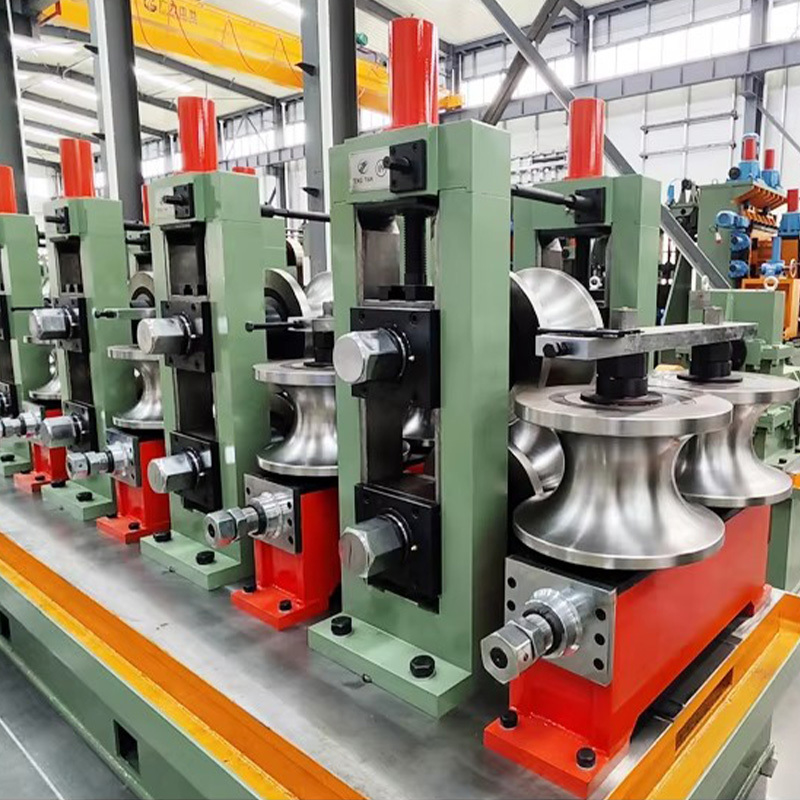

Q235 Carbon Steel Pipe Making Machine for Round Pipes 219mm

Name: Q235 Carbon Steel Pipe Making Machine for Round Pipes 219mm
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG219
Price: 50,000.00 USD
Availability: InStock

製品の詳細:

起源の場所:	中国
ブランド名:	TengTian
証明:	BV,CE,ISO
モデル番号:	HG219

詳細情報

起源の場所:

中国

ブランド名:

TengTian

証明:

BV,CE,ISO

モデル番号:

HG219

製品名:

Q235 丸いパイプのための炭素鋼パイプ製造機械

コイルド:

Q235

直径:

219mm (最大)

厚さ:

6mm

長さ:

6-9M

重さ:

8トン

カッター:

ホットソー

流出表:

18m

キーワード:

丸いパイプのための炭素鋼パイプ製造機械

ハイライト:

High Light

ハイライト:

Q235 carbon steel pipe machine

round pipe making machine 219mm

steel pipe machine with warranty

取引情報

最小注文数量:

1セット

価格:

$100000 to $1 million

パッケージの詳細:

プラスチックフィルム巻き,電気部品用の木製ケース

受渡し時間:

150日

支払条件:

L/C、T/T

供給の能力:

年間21組

製品説明

Q235 Carbon Steel Pipe Making Machine For Round Pipes

Product Specifications

Attribute	Value
Product Name	Q235 Carbon Steel Pipe Making Machine For Round Pipes
Coil	Q235
Diameter	219mm (max.)
Thickness	6mm
Length	6-9M
Weight	8 Tons
Cutter	Hot saw
Runout Table	18M

Product Description

This Q235 Carbon Steel Pipe Making Machine is designed to produce high-quality welded steel pipes, including round, square, and rectangular pipes. Featuring advanced roll pass design, the production line ensures precise machining and high-quality assembly.

Material Specifications

Standard: Conforming to YB189-64 standard
Material: Low carbon steel and low alloy steel, Q235
Strip Width: 320-700mm
Strip Thickness: 1.5-6.0mm
Inner Diameter of Coils: φ470～φ510mm
Outer Diameter of Coils: Φ1000～φ1800mm
Coil Weight: ≤8T

Pipe Specifications

Pipe Size:
- Round Pipe: ø89-219mm
- Square Pipe: 80x80 - 175x175mm
Thickness: 1.5-6.0mm
Length: 6m
Forming Speed: 20-50 m/min

Buyer-Supplied Requirements

Total capacity: Around 850 kw
Circulation Cooling Water (whole system):
- Flow: 20T/h～30 T/h
- Pool Volume: 30m³
Compressed Air (whole system):
- Flow: 5m³/min
- Pressure: 5-7kg/㎡
Cable: All cables outside of the machine must be purchased after machine installation

Note: We typically send 2-3 engineers to perform installation and commissioning. The buyer is responsible for providing round-trip tickets, food & accommodation, local transportation, and a technical service fee of $150 per day per engineer.

Frequently Asked Questions

Q1: Are you manufacturer or trading company?

A1: We are manufacturer with more than 20 years experience.

Q2: What is the max size of pipe you have ever produced?

A2: Max φ630mm

Q3: Can I visit your customer machine line?

A3: Yes, but we need to get agreement from our customer first.

Q4: What is your machine advantages?

A4: Full automatic, Direct forming square, Share rollers, Fast change system

Q5: How I can get the quotation?

A5: Please send your requirements of pipe size and thickness to us.
