正方形のボール ミル
>

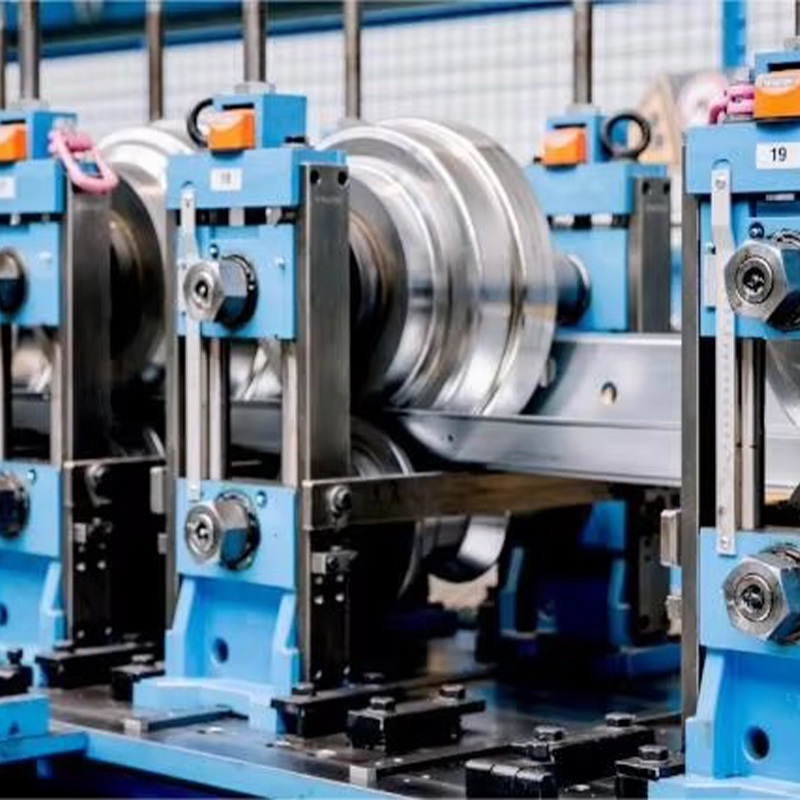

Square Pipe Making Machine 60m/Min High-Frequency

Square Pipe Making Machine 60m/Min High-Frequency

製品の詳細:
起源の場所: シジアズワン 中国
ブランド名: Tengtian
証明: CE,ISO9001, BV
モデル番号: HG114
詳細情報
起源の場所:
シジアズワン 中国
ブランド名:
Tengtian
証明:
CE,ISO9001, BV
モデル番号:
HG114
製品名:
正方形のパイプ製造機60m/min高周波
Tube_size:
カスタマイズ可能
チューブサイズ:
40x40—90x90mm
スピード:
≤2.5T
電圧:
カスタマイズ可能
直径:
32-114mm
coil_width:
カスタマイズ可能
溶接:
ハイ周波数溶接
許容範囲:
0.7-4.0mm
丸いパイプの直径:
0.7-4.0 mm
溶接の種類:
高周波溶接
Power_Source:
電気
ストリップの厚さ:
1.0-5.0mm
ライン速度:
Max.100m/min
キーワード:
20-50m/min
関数:
コールドソーまたはホットソー
キーワード:
機械を作る正方形の管
ハイライト:

High Light

ハイライト:

Square Pipe Making Machine 60m/Min

,

High-Frequency Square Tube Mill

,

Square Tube Mill with warranty

取引情報
最小注文数量:
1セット
価格:
$100000 to $1 million
パッケージの詳細:
標準輸出梱包
受渡し時間:
90日
支払条件:
L/C、T/T
製品説明
Square Pipe Making Machine 60m/Min High-Frequency
Square Pipe Making Machine 60m/Min High-Frequency 0
Key Specifications
Attribute Value
Tube Size Range 40x40—90x90mm (Square/Rectangular), 32-114mm (Round)
Wall Thickness 1.0-5.0mm
Maximum Line Speed 100m/min
Welding Type High frequency welding
Power Source Electric (Customizable Voltage)
Cutting Method Cold Saw or Hot Saw
Product Overview

The HG114 High-Frequency Welded Pipe Mill Line is engineered to produce precision welded pipes with diameters ranging from 50-114.0mm and wall thicknesses from 1.0-5.0mm. This versatile system also manufactures square, rectangular, and deformed pipes of corresponding sizes. Featuring advanced roll pass design, this production line delivers superior quality welded steel pipes with exceptional machining precision.

Square Pipe Making Machine 60m/Min High-Frequency 1
Available Models
Model Thickness (mm) Specification (mm) Speed (m/min) Main Power (kw)
H20 0.3-1 8-20 30-120 55
H32 0.3-2.0 12-32 30-120 75
H50 0.8-2.5 16-50 30-110 110
H60 0.8-3 20-60 30-100 132
H76 1-3 12-76 30-100 320
H89 1-4 32-89 30-80 350
HG114 1.5-5 45-114 30-60 400

Square Pipe Making Machine 60m/Min High-Frequency 2

Production Process
  1. Loading car → Uncoil → Cutting and Welding
  2. Accumulator → Forming
  3. HF welding → Anneal welder → Deburring
  4. Cooling → Sizing → Straightening
  5. STD Cold-cutting saw → Transmitting
  6. Hydrostatic testing → End facer → Straightener
  7. Packing → Storage



Square Pipe Making Machine 60m/Min High-Frequency 3
Comprehensive Service Package
  • Installation & Training: Our engineers will install the equipment and train your operators
  • Warranty: 1-year quality guarantee with lifetime repair support
  • Pre-Sale Services: Workshop design and production output planning
  • After-Sale Support: Ongoing technical assistance and skilled engineer deployment
  • Project Design: Complete project planning for stainless/carbon steel pipe production
  • Logistics: Full responsibility for loading and shipping arrangements
Product Name: Square Pipe Making Machine Max Forming Speed 60m/Min Pipe Diameter 114.3mm Square Tube Mill
Pipe Material: Carbon Steel
Power: 1500KW
Speed Range: 20 - 60m/Min
Pipe Shapes: Round, Square & Rectangular
Round Pipe Diameter: 33.4mm-114.3mm

Square Pipe Making Machine 60m/Min High-Frequency 4

Square Pipe Making Machine 60m/Min High-Frequency 5

Square Pipe Making Machine 60m/Min High-Frequency 6

 Square Pipe Making Machine 60m/Min High-Frequency 7Square Pipe Making Machine 60m/Min High-Frequency 8

Square Pipe Making Machine 60m/Min High-Frequency 9

1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.

2.) Warranty Team

One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.

3.) We supply the pre-sell and after-sell service.

pre-sell service: workshop design, and production output design

after-sell service: installation and training, and the skilled engineer for working.

4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.

5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.

6.) We will be responsible for the loading and shipping

Square Pipe Making Machine 60m/Min High-Frequency 10

FAQ:

Q1: Are you manufacturer or trading company?
A1: we are manufactuer , more than 20 years experience.

Q2: What is the max size of pipe you have even produce?
A2: Max φ630mm

Q3:Can I visit your customer machine line?
A3: Yes, but I need to get agreement from my customer firslty.

Q4: what is your machine advantages?
A4:Contain Full automatic, Direct forming square, Share rollers. Fast change system

Q5:How I can get the quotation?
A5:Please send your requires of pipe size , thickness to us.
