| 起源の場所: | 中国、ヘベイ |
| ブランド名: | Tengtian |
| 証明: | CE ISO |
| モデル番号: | HG50 |

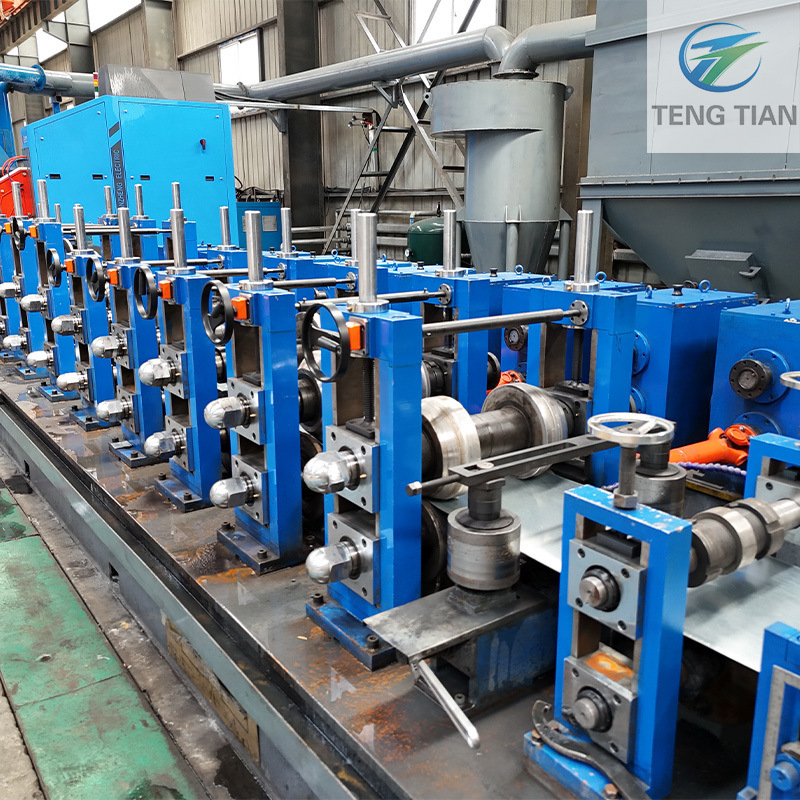

Complete system includes: Uncoiler, Leveling, Shearing, Welding, Accumulator, Forming & Sizing, HF welding, and Blanking components.
| Attribute | Value |
|---|---|
| Model Number | T76 |
| Voltage | 220V/380V |
| Rated Power | 7.5kw |
| Weight | 1000KG |
| Certification | CE ISO9001:2008 |
| Warranty | 1 Year |
| Parameter | Value |
|---|---|
| Steel Pipe Material | Q235 |
| Pipe Diameter Range | Round Ø48-Ø152mm, Square 120x120mm |
| Thickness | 4-5mm |
| Production Speed | 50-70m/min |
| Cutting Accuracy | ≤±3mm |
| End Burrs | ≤0.2mm |
| Parameter | Value |
|---|---|
| Standard | YB189-64 |
| Tensile Strength | ≤520Mpa |
| Yield Strength | ≤365MPa |
| Strip Width | 180-1600mm |
| Strip Thickness | 10.0-16.0mm |
Q1: Are you manufacturer or trading company?
A1: we are manufactuer , more than 20 years experience.
Q2: What is the max size of pipe you have even produce?
A2: Max φ630mm
Q3:Can I visit your customer machine line?
A3: Yes, but I need to get agreement from my customer firslty.
Q4: what is your machine advantages?
A4:Contain Full automatic, Direct forming square, Share rollers. Fast change system
Q5:How I can get the quotation?
A5:Please send your requires of pipe size , thickness to us.
