| 起源の場所: | 中国 |
| ブランド名: | TENGTIAN |
| 証明: | CE ISO9000 BV |
| モデル番号: | HG90mm |
| Attribute | Value |
|---|---|
| Model | HG 90mm |
| Production | Square pipe and round pipe |
| Feature | Full automatic |
| Name | Tube mill |
| Other pipe | Square pipe and Rectangular pipe |
| Max size | φ25～φ90 mm, 30X30-70X70mm |
| Thickness | 1.5-3.0mm |
| Length | 6-12m |
| Rollers | Included |

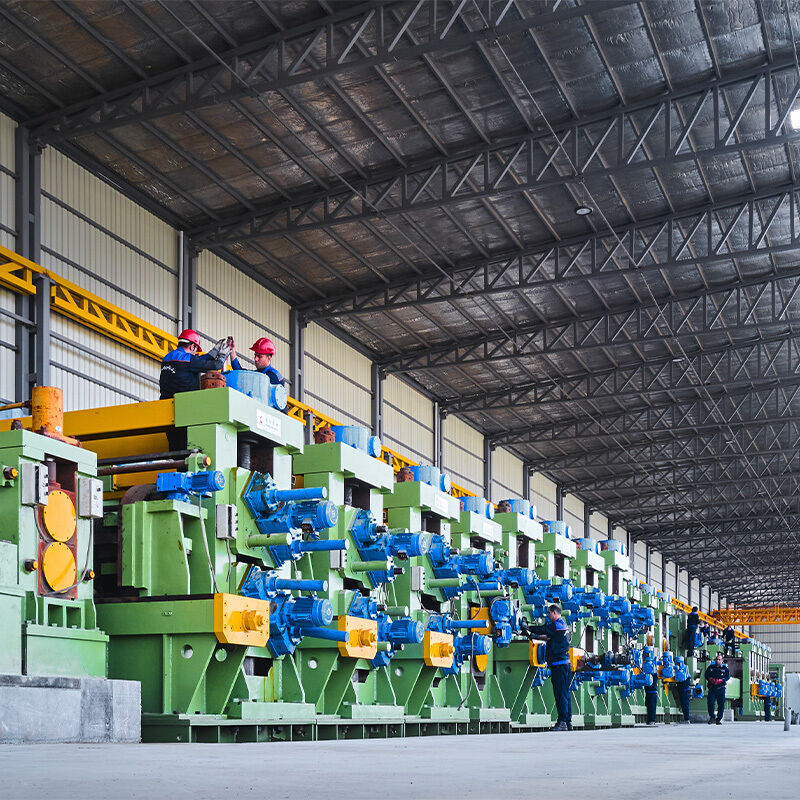

This automatic tube mill equipment is designed to produce high-quality welded steel pipes, including round pipe, square pipe, and deformed pipe. Featuring precision roll pass design, the production line delivers excellent machining quality and high assembly precision.
| Material Specifications | |
| Standard | SPHC, SPHT-2, SS 400, SS440, SS490 |
| Material | Low carbon steel and low alloy constructional steel |
| Mechanical properties | σb≤520Mpa, σs≤365MPa |
| Strip Width | 78-280mm |
| Strip Thickness | 1.5-3.0mm |
| Inner Diameter of Coils | Φ508mm (buyer should confirm) |
| Outer Diameter of Coils | Φ1300～φ1760mm (buyer should confirm) |
| Coil Weight | ≤30T |
| Pipe Specification | |
| Pipe Diameter | 1) Round pipe: φ25-φ90mm 2) Square tube: 30X30-70X70mm |
| Length | 6m |
| Pipe-cutting Precision | 0-6mm |
| Forming Speed | Max 80m/min (max size and thickness cannot reach max speed) |
Our technical service personnel will be on-site for equipment installation, commissioning, and operator training. The warranty covers 12 months from equipment arrival date. Under normal operating conditions, we provide free repair or replacement for any quality-related component failures.
