| 起源の場所: | 中国hebei |
| ブランド名: | TengTian |
| 証明: | ISO CE |
| モデル番号: | HG140 |
| Attribute | Value |
|---|---|
| Product Name | Customized Automatic Welded Pipe Machine Low Power Consumption |
| Technology | FF Forming |
| Tube Shape | Square |
| Tube Thickness | 2mm-6mm |
| Pipe Length | 6m |
| Weight | 20000kg |
| Advantage | Easy to operate |
| Warranty | One year |
| After sale service | Overseas Service |

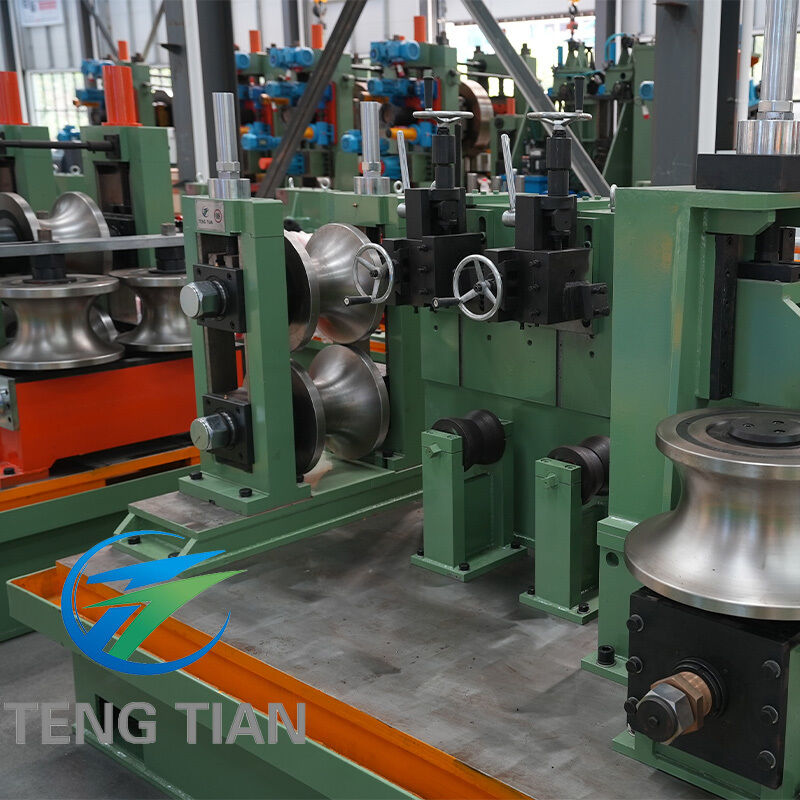

TENGTIAN Automatic Tube Mill Machine is an automated tubular manufacturer designed to efficiently produce steel tubing of custom sizes with automatic operation. This solution provides reliable and efficient roll forming of steel tubing with consistent quality, fast production rates, and great precision.
Key benefits include reduced labor costs, improved accuracy, and streamlined production processes. The machine ensures reliable, durable performance while being easy to operate, making it cost-effective for manufacturing operations.
| Model | Diameter(mm) | Thickness(mm) | Forming Speed(m/min) | Main Engine(KW) | Power(KW) | Area(m²) |
|---|---|---|---|---|---|---|
| HG32 | Φ10-Φ32 | 0.4-1.5 | 30-120 | 250 | 100 | 12*40 |
| HG50 | Φ16-Φ76 | 0.7-2.5 | 30-120 | 400 | 150 | 12*60 |
| HG76 | Φ25-Φ76 | 1-4 | 30-100 | 400 | 300 | 16*80 |
| HG89 | Φ32-Φ89 | 1-4.5 | 30-80 | 500 | 300 | 16*100 |
| HG114 | Φ45-Φ114 | 1.5-5(3-7) | 30-60 | 400 | 300 | 16*100 |
| HG165 | Φ60-Φ165 | 3-7(4-10) | 30-50 | 600 | 400 | 16*100 |
| HG219 | Φ114-Φ219 | 4-8(5-16) | 20-40 | 800 | 500 | 16*150 |
| HG273 | Φ114-Φ273 | 4-10(5-16) | 15-30 | 1000 | 600 | 18*160 |
| HG325 | Φ165-Φ325 | 4-10(4-14) | 10-30 | 1200 | 600 | 24*180 |
| HG426 | Φ165-Φ426 | 4-12.7(4-16) | 8-25 | 1400 | 800 | 24*180 |
| HG528 | Φ219-Φ508 | 4-16 | 8-20 | 2000 | 1000 | 24*180 |
This high-performance automated tube mill provides superior forming accuracy and speed for various materials including steel, aluminum, and copper. Certified CE and ISO9001, it's ideal for:
